Plumbing Spool Drawings


Plumbing spool drawings are highly detailed, prefabrication-ready diagrams that break down plumbing systems into manageable sections or spools for efficient assembly and installation. These drawings specify precise pipe dimensions, materials, fittings, welding details, and connection points, ensuring accuracy and seamless integration. By providing a clear reference for manufacturers and installers, they enhance coordination, minimize on-site labour, reduce errors, and improve overall installation efficiency.

Plumbing Systems


Plumbing Spool Drawings provide detailed visualizations of a building's plumbing system, highlighting components like pipes, fittings, valves, and fixtures. They specify pipe sizes, materials, and installation routes, ensuring clarity and precision. This information streamlines the installation process, reduces errors, and ensures system efficiency. By eliminating confusion, the drawings help avoid costly revisions, delays, and rework.

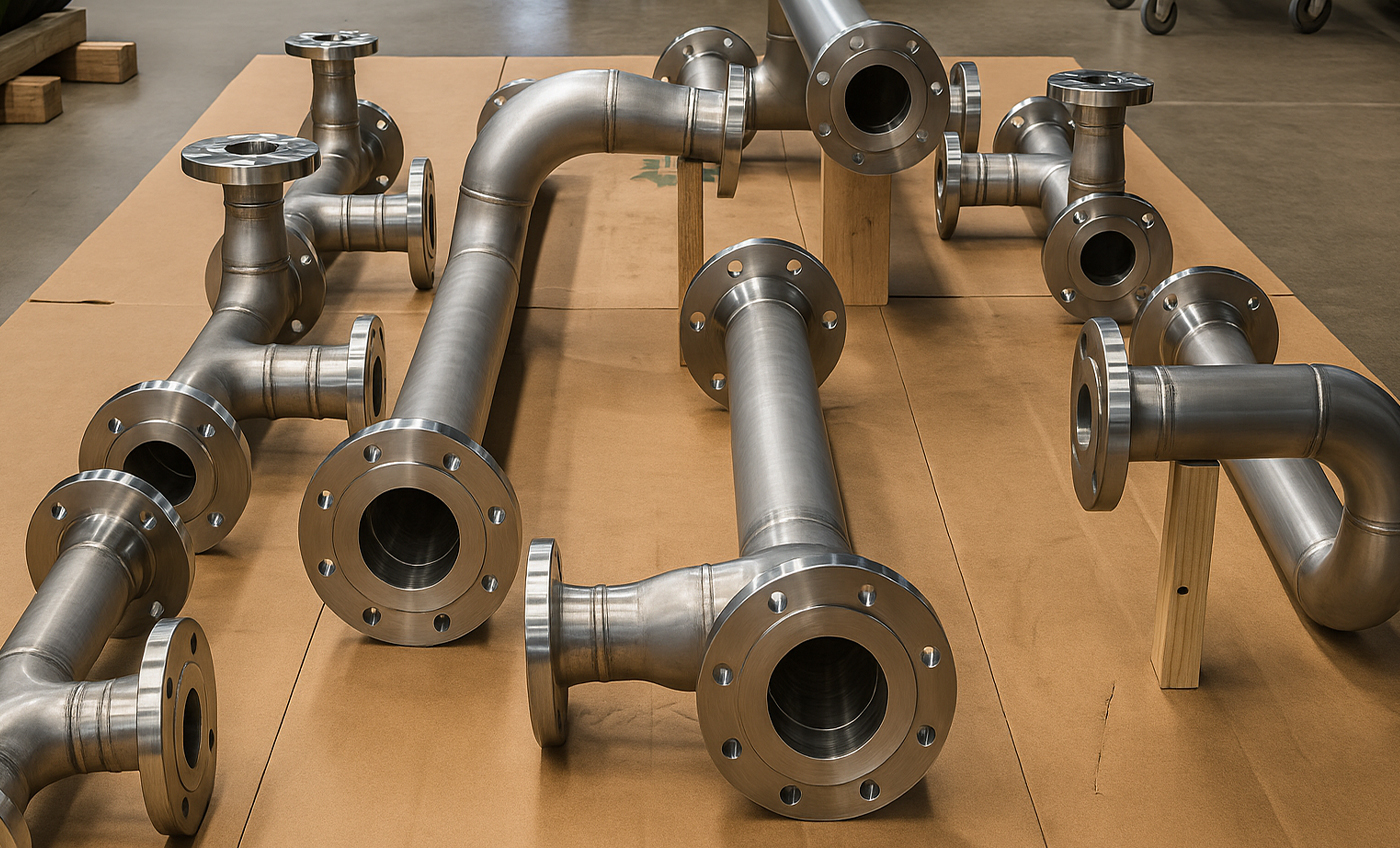

Fabrication Guidance


Our Plumbing Spool Drawings are fully customized for each project, ensuring plumbing components are pre-fabricated with utmost precision. The drawings specify measurements, materials, and joining methods, enabling the fabrication team to efficiently assemble components off-site. This approach reduces on-site labour, minimizes errors, and boosts overall efficiency, leading to significant cost savings and faster project completion.

Coordination


Plumbing Spool Drawings are carefully coordinated with the building's other essential systems, including HVAC, electrical, and structural elements. We proactively identify potential clashes in the design phase, helping avoid costly modifications later. By collaborating with other disciplines, we ensure our plumbing drawings fit seamlessly within the building's overall system, improving workflow and eliminating installation conflicts.

Stop Losing Profit to Errors, Delays & Rework — Build Faster and With Total Predictability.

Get Project Plan

Get a quick expert review showing exactly where you can prevent rework, shorten timelines, and improve delivery with precision.

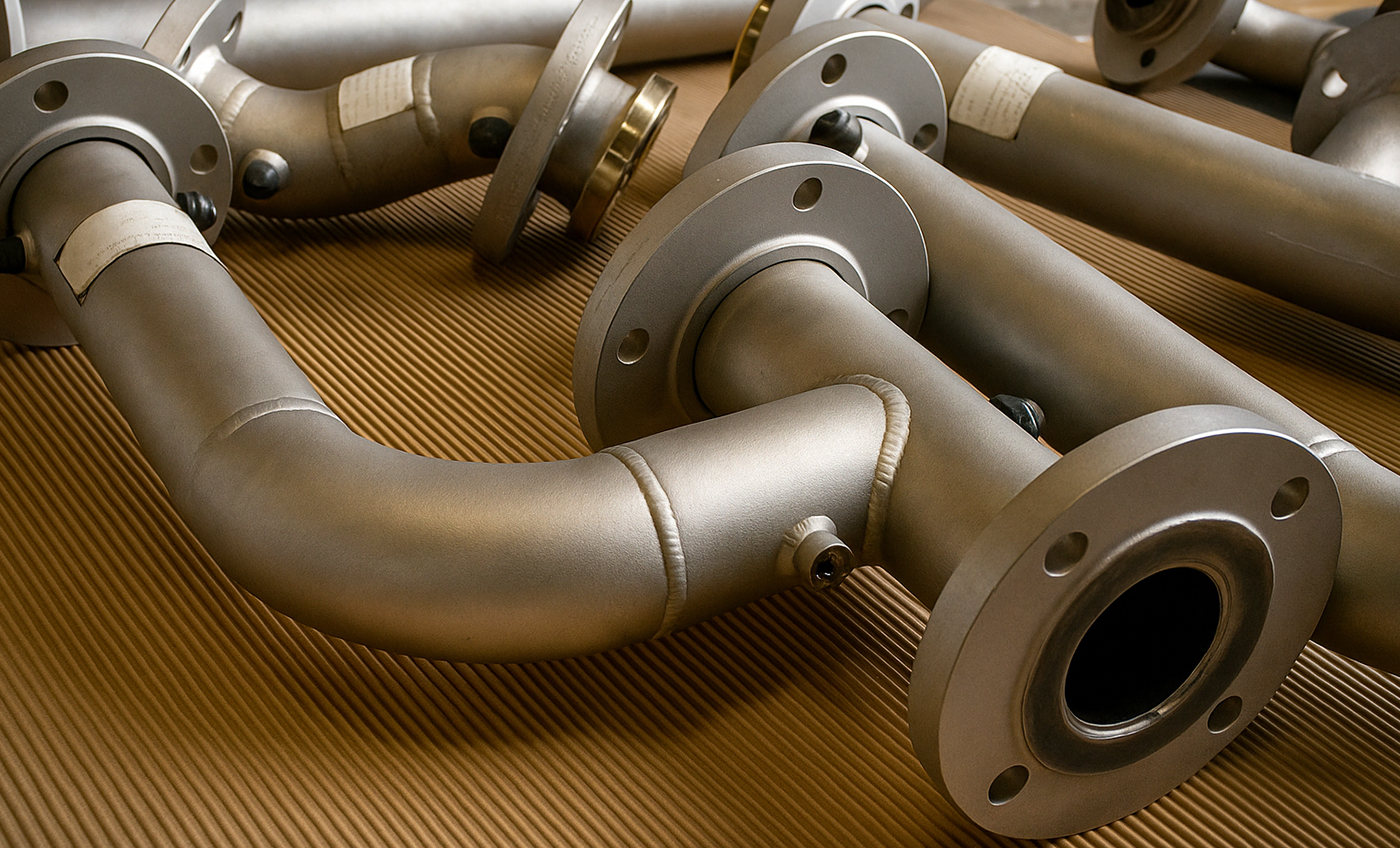

Standards and Codes


We prioritize safety, quality, and regulatory compliance in our Plumbing Spool Drawings. Our skilled team ensures strict adherence to building codes, safety standards, and industry best practices, covering pressure ratings, material specifications, and fire safety regulations. This meticulous approach guarantees optimal system performance, seamless inspections, and full compliance, giving clients peace of mind and confidence throughout the construction process.

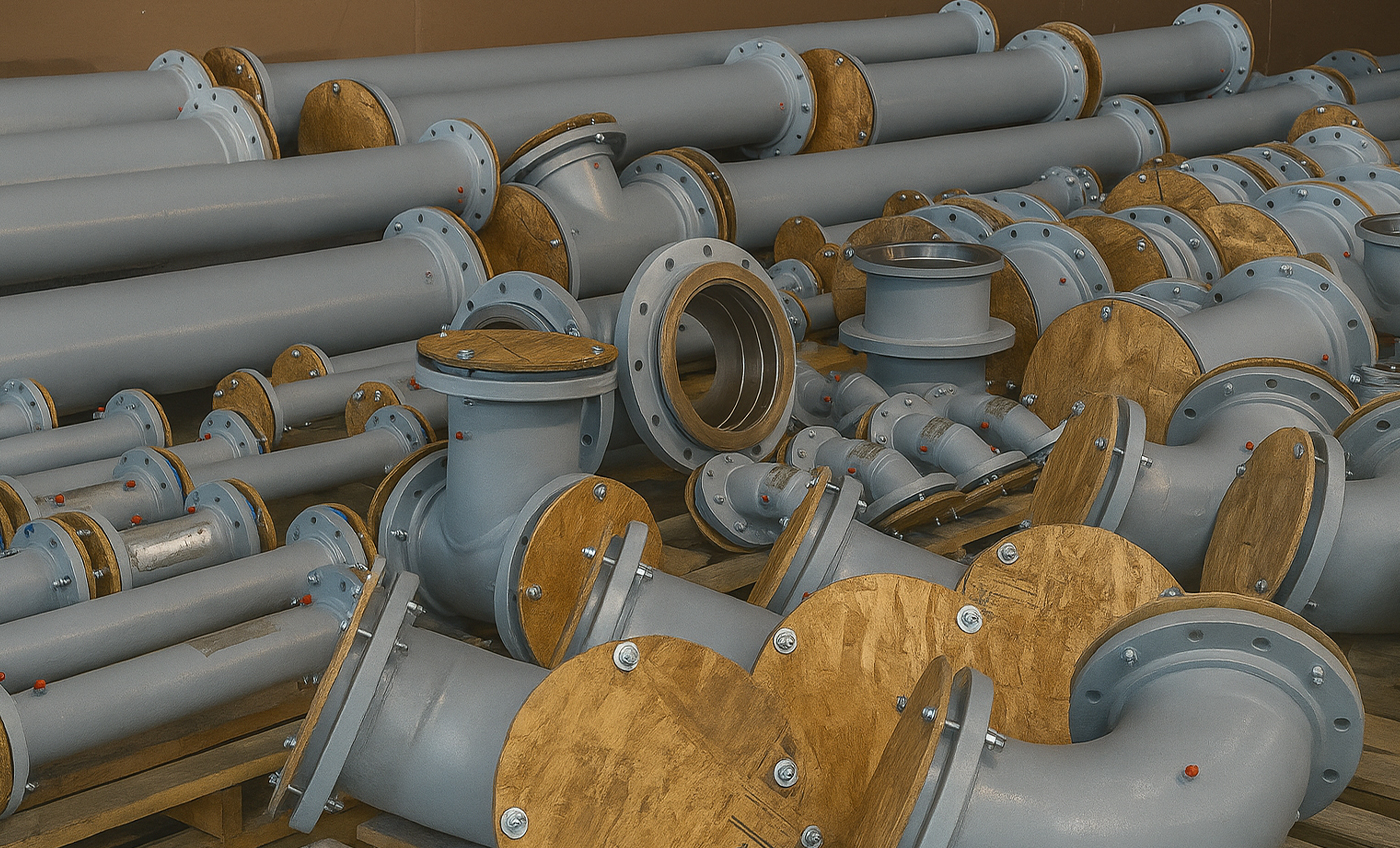

Cost and Time Efficiency


Our Plumbing Spool Drawings are designed to save both time and money by providing pre-fabricated plumbing components for quick installation. Contractors can avoid delays from last-minute fabrication or on-site adjustments. The precision of our drawings ensures the system is installed correctly the first time, minimizing costly errors, repairs, and rework. This efficiency supports timely project completion and helps optimize the budget.
